Outdoor LED Wall
IP65 outdoor LED wall from P2.5 to P6 at 3000 to 6000 nits for facades, forecourts, stages and vehicle-mounted screens.
Authorised Marketing AllyCapital Infoart
At a glance
- Sizes
- P2.5 · P3 · P4 · P6P2.5P3P4P6
- Brightness
- P2.5 3000 nitsP3 3500 nitsP4 5000 / 6000 nitsP6 5000 / 6000 nits3000 nits3500 nits5000 / 6000 nits5000 / 6000 nits
- Pixel pitch
- P2.5 2.5 mmP3 3 mmP4 4 mmP6 6 mm2.5 mm3 mm4 mm6 mm
- Module size
- P2.5 320 × 160 mmP3 320 × 160 mmP4 320 × 160 mmP6 192 × 192 mm320 × 160 mm320 × 160 mm320 × 160 mm192 × 192 mm
Specifications
From Capital Infoart brochure V33 2026, page "LED Indoor & Outdoor Series".
| Specification | P2.5 | P3 | P4 | P6 |
|---|---|---|---|---|
| Module and cabinet | ||||
| Pixel pitch | 2.5 mm | 3 mm | 4 mm | 6 mm |
| Module size | 320 × 160 mm | 320 × 160 mm | 320 × 160 mm | 192 × 192 mm |
| Cabinet size | 640 × 640 mm | 576 × 576 mm | 640 × 640 mm | 576 × 576 mm |
| Outdoor protection | IP65 | |||
| Performance | ||||
| Brightness | 3000 nits | 3500 nits | 5000 / 6000 nits | 5000 / 6000 nits |
| Refresh rate | 3840 Hz | 3840 Hz | 1920 / 3840 Hz | 1920 / 3840 Hz |
| Best viewing range | over 2 m | over 2.5 m | over 3.5 m | over 6 m |
| Control | ||||
| Content input | LED controller fed by USB drive, LAN, HDMI from a PC or server, or a phone over Wi-Fi | |||
| Management | Centralised control and management | |||
Overview
The Outdoor LED Wall uses IP65-rated cabinets and high-output LEDs so it can face the weather and the sun on a building facade, a forecourt, a stadium or a truck-mounted screen. P2.5 and P3 at 3000 and 3500 nits suit shaded forecourts and semi-outdoor stages viewed from a few metres; P4 and P6 at 5000 to 6000 nits are for facades and roadside screens read from six metres and beyond.

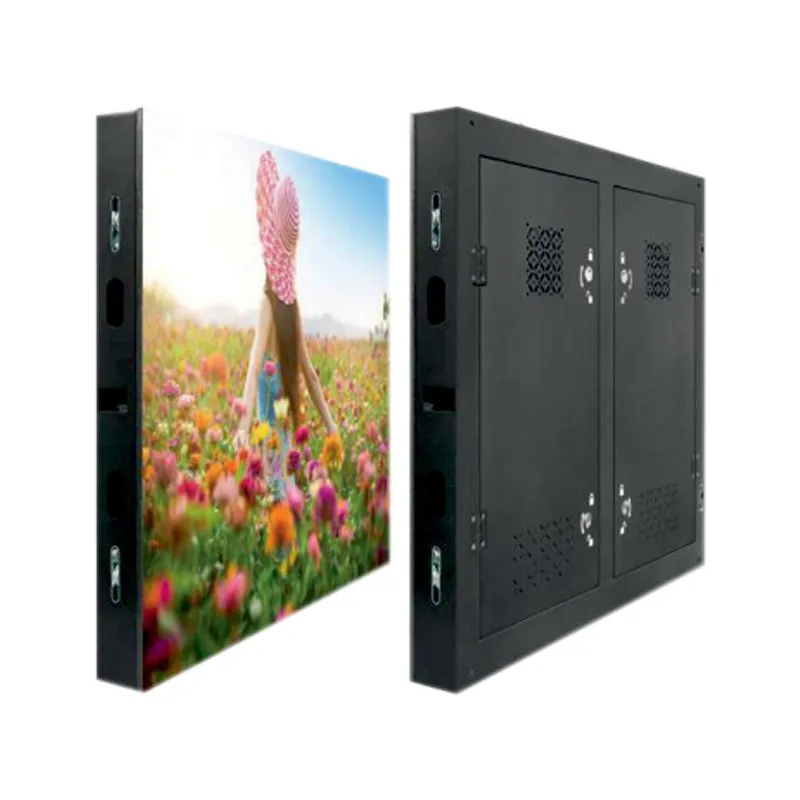

Cabinets are 640 or 576 mm square, built from 320 × 160 mm modules (192 × 192 mm on P6), and are fed by an LED controller that takes a USB drive, LAN, HDMI from a PC or server, or a phone over Wi-Fi. Capital Infoart supplies and installs the wall, and the brochure lists a vehicle-mounted configuration for events and campaigns.
Highlights
- Pixel pitches P2.5, P3, P4 and P6
- 3000 to 6000 nits for daylight viewing
- IP65 weather protection
- 3840 Hz refresh, 1920 or 3840 Hz on P4 and P6
- Small, light modules with good heat dissipation and low power draw
- Centralised control and management over LAN, HDMI, USB or Wi-Fi
- Vehicle-mounted LED option
Typical use
- Vehicle LED
- Corporate lounges
- Exhibition centres
- Museums
- Galleries
- Transport terminals
- Shopping complexes
- Food courts
- Government departments
- Educational institutions
- Hospitals
Quote for the Outdoor LED Wall
Sizes, quantities and installation scoped on request, with a written quote from Kolkata.
